Specification


Video





● Light source: Philips MSD Platinum 250W.

Color temperature: 8000K.

Lifespan: 2200 hours.



● Input voltage: 100-240V AC, 50/60HZ.



● Power consumption: 350W@220V.



● Beam angle: 2.2 °.



● Head movement:

Pan: 540 ° with electronic error correction.

Tilt: 270 ° with electronic error correction.



● Color wheel: 13 colors +white, rotation with variable direction and speed.



● Static gobo wheel: 10 gobos + effect gobo + open, wheel rotation and shake effect.



● Effect wheel: two large-angle rotating prisms (superposable), double-layer prism/ 16-prism (optional).



● Atomization function & colorful color plate.



● Dimmer: 0-100% linearly adjustable.



● Focus: 3 meters to infinity.



● Multilayer combined lens group optical system, electric focusing.



● DMX channel: 16/20CH.



● Overheat protection.



● IP20.

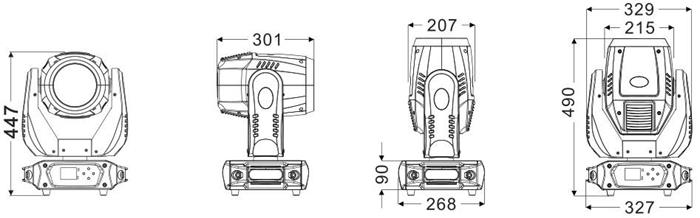

● Product size: 327 (length) × 268 (width) × 490 (hight) mm.

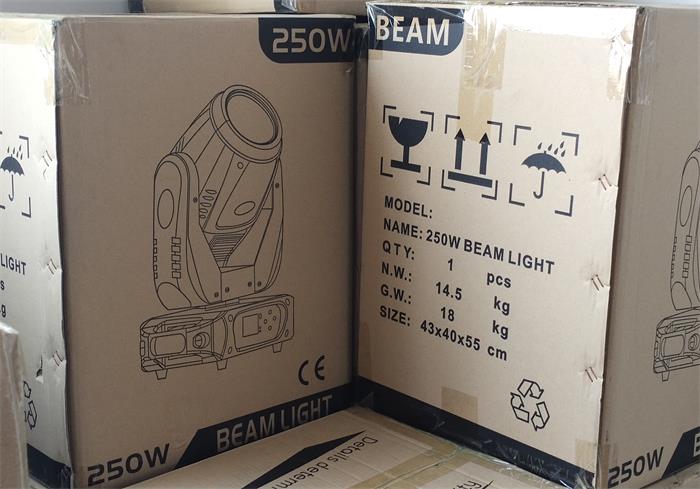

● Packing:

1pc/carton

Carton size: 43x40x55cm

NW: 14.5kg, GW: 18kg.
