Specification


Video





● Light source: OSRAM SIRWS HRI 371W/MSD380.

Color temperature: 8000K.

Lifespan: 2200 hours.



● Input voltage: 100-240V AC, 50/60HZ.



● Power consumption: 600W@220V.



● Beam angle: 1.8 - 40 °.



● Head movement:

Pan 540 ° with electronic error correction.

Tilt: 270 ° with electronic error correction.



● 1 color wheel + 2 gobo wheels:

Color wheel: 13 colors + white.

Static gobo wheel: 13 gobos + open.

Rotating gobo wheel: 9 gobos + open (gobo size: 15.4mm outer diameter, 13mm inner diameter).



● Effect wheel: rainbow effect.



● Prism: 16-facet prism & (8+16)-facet prism (overlapped to 54-facet prism).



● Independent atomization function.



● Dimmer: 0-100% linearly adjustable.



● Strobe: 0.5 - 20 fps.



● Control panel: 2.8 inch colorful LCD display, can be inverted 180 degrees display.



● DMX channel: 18/24/30CH.



● Cooling system: built-in convection fans, with overheat protection.



● IP20.

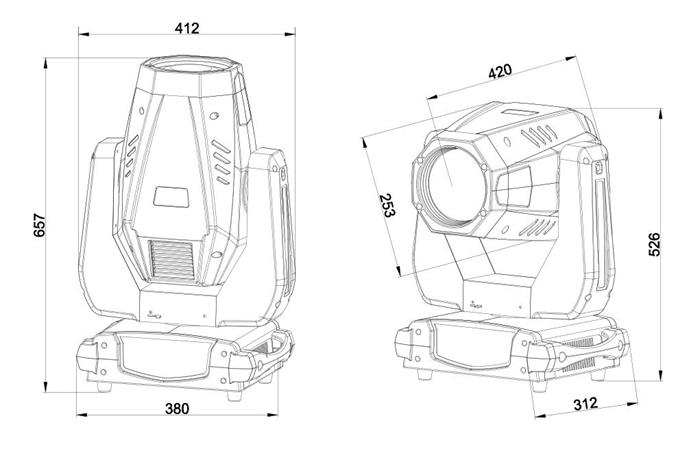

● Product size: 412 (length) × 312 (width) × 657 (hight) mm.



● Net weight: 22kg.





● Packing:

1pc/carton

Carton size: 53x50x63cm

NW: 22kg, GW: 27kg
